Affordable CNC Press Brake: The Ultimate Buying Guide (2026)
Affordable CNC Press Brake – If you want a cheap yet effective solution for your metal fabrication shop, you’ve found it. Professionally, JS RAGOS is a manufacturer that has helped thousands of companies choose the correct press brake machine. In this guide, you’ll learn about the three main kinds of press brakes and their characteristics, advantages, and disadvantages.
What Type of Press Brake Works for You?
There is a lot to consider when purchasing a press brake. Press brakes are an investment to your business and purchasing the wrong one will impact your bottomline. An ill-fated investment will have high operational expenses, extended downtime and low quality products. Below are the three most popular types:
• Normal NC Press Brake – The least advanced type of press brake, it has a low price point, and ease of use.
• Torsion Bar NC Press Brake – Programming capabilities for multi-angle work and quicker for multi-sessions.
• Electro-Hydraulic CNC Press Brake – Automated work with high accuracy at low elapsed times.
We will unpack each option.
1. Normal NC Press Brake (Standard Economical Type)
Key Features
• Control system: E21 (ESTUN), MD320 (SANYUAN)
• Axes controlled: X-axis (back gauge forward/back), Y-axis (ram up/down)
• Drive motor: AC motor for back gauge and cylinder travel
• Working principle: Controller drives motor → encoder sends feedback → controller adjusts speed, position, and distance
• Programming: Single program + multiple programs; e.g., E21 stores up to 40 programs, 25 bends per program
Advantages
• Very easy for workers to learn and operate
• Low purchase price – ideal for startups or small workshops
• Simple maintenance and spare parts availability
Disadvantages
• No angular programming – you must manually calculate and set angles
• Low bending efficiency when working with parts that have multiple different angles
• Lower bending precision compared to other types
�� JS RAGOS Insight: This type is perfect for small enterprises that mainly bend simple, same-angle parts and need an affordable CNC press brake to get started.

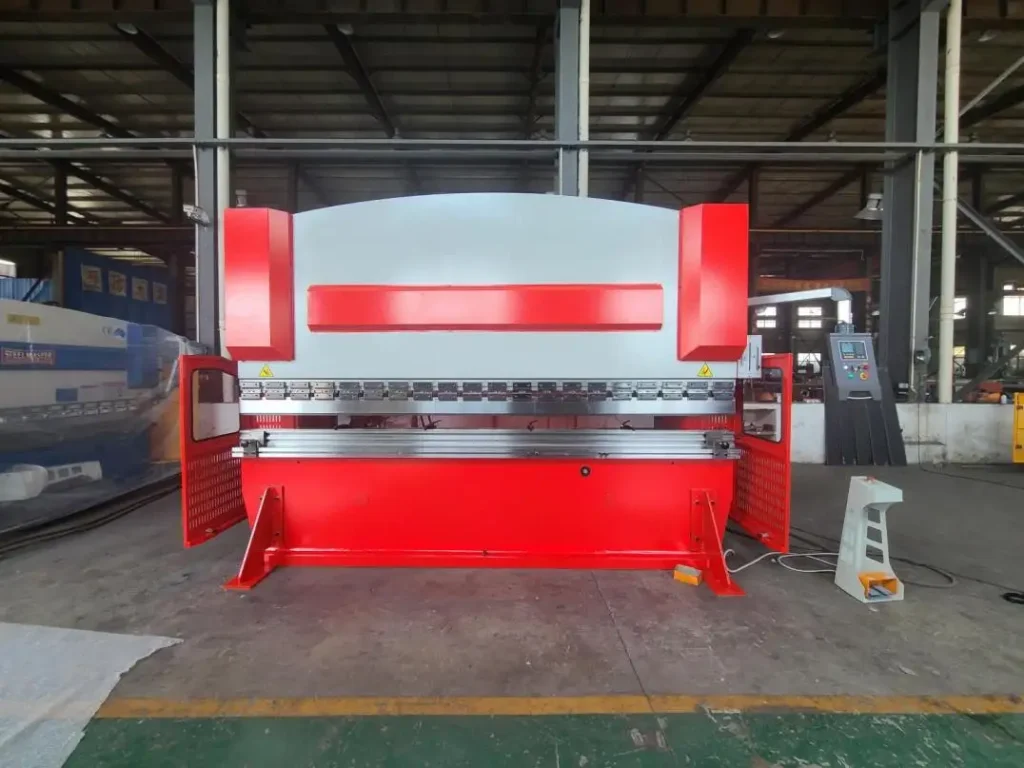

2. Torsion Bar NC Press Brake (Mechanical Synchronization)
Key Features
• Control system: DA-41S (DELEM), E300 (ESTUN), TP10 (Hexin)
• Axes: X-axis (back gauge), Y-axis (ram)
• Motors: Servo motors for X and Y axes – faster and more accurate than AC motors
• Working principle: Controller sends signal to servo drive → servo motor moves each axis precisely
• System functions: Angular programming (key difference from Normal NC), punch & die library, single/multiple programming
Advantages
• Angular programming available – directly input target angle, no manual trial bends
• Greatly improves bending efficiency for workpieces with multiple different angles
• Ideal for mid-size companies that want to raise productivity without a huge investment
• Back gauge positions quickly and accurately (servo driven)
Disadvantages
• Torsion bar balance structure – uses a mechanical shaft to force left/right cylinders to move together
• Low synchronization precision, no real-time error feedback
• Poor resistance to off-center loading (when bending one side of a long part)
• Limited ability to correct ram tilting
�� JS RAGOS Note: Torsion bar NC press brakes offer a sweet spot for growing shops. If you handle varying bend angles daily but don’t need ultra-tight tolerances, this is a smart choice.

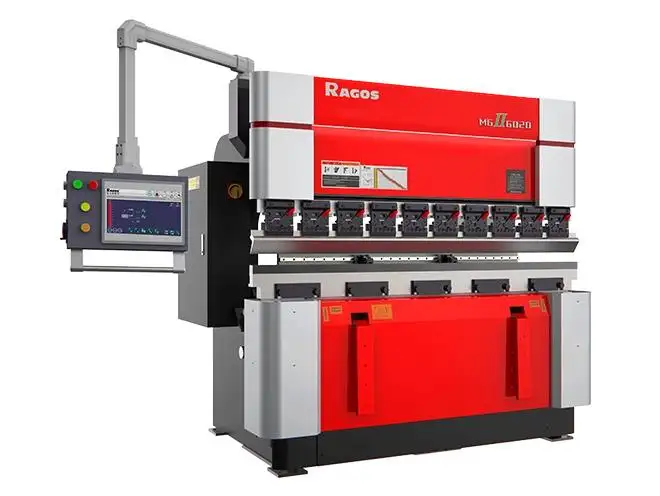

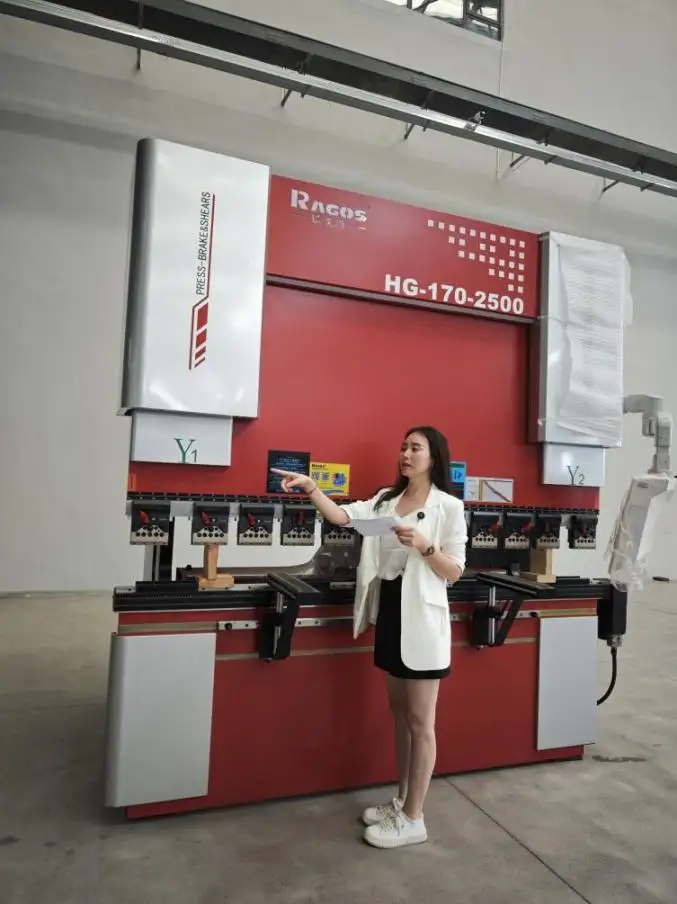

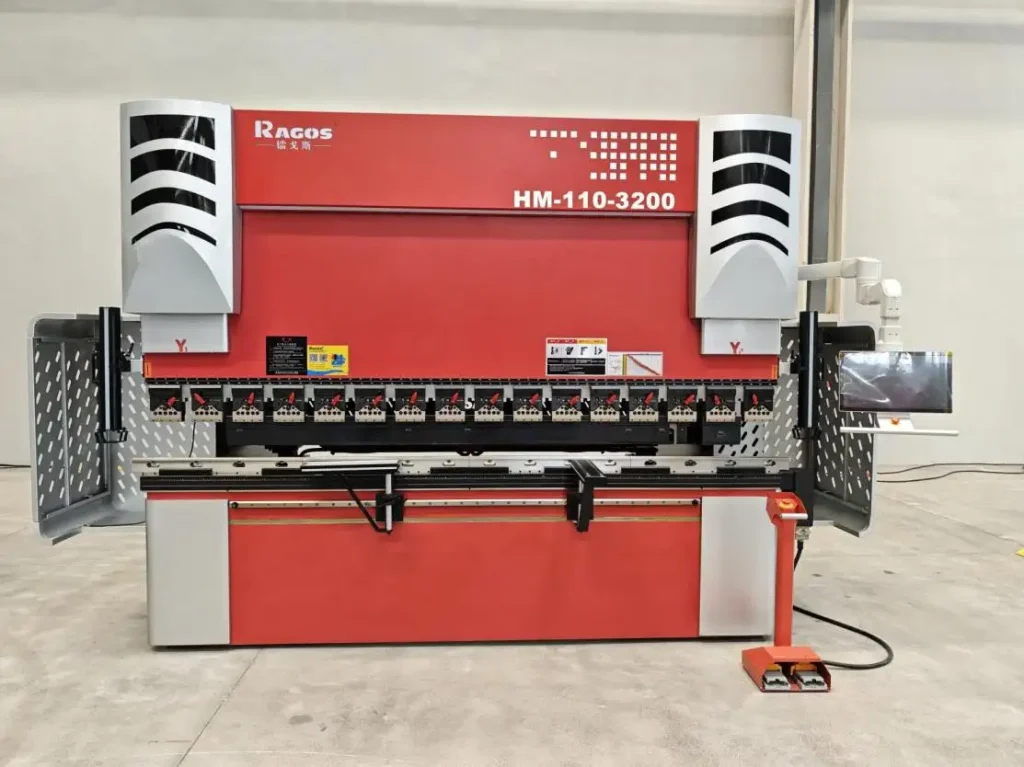

3. Electro-Hydraulic CNC Press Brake (High-Precision Automation)
Key Features
• Control systems: DELEM, Cybelec, ESA series – full graphic touch screens

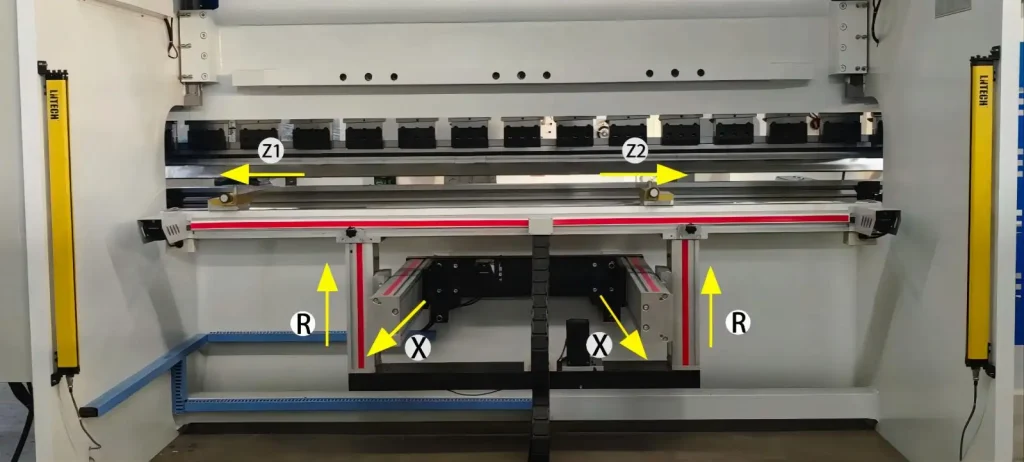

• Axes:
- Y1, Y2 (left/right cylinder independent control)
- X (back gauge forward/back)
- R (back gauge up/down)
- Z1, Z2 (back gauge stopper left/right)
- V (crowning compensation)
• Drive: Servo motors for back gauge; electro-hydraulic proportional valves with grating ruler full closed-loop feedback
• Key functions: Angular programming, multi-axis back gauge, tool library, crowning control, 3D graphic simulation
Common Axis Configurations (3+1 to 8+1)
• 3+1: Y1+Y2+X+V
• 4+1: Y1+Y2+X+R+V
• 6+1: Y1+Y2+X+R+Z1+Z2+V
• 8+1: Y1+Y2+X1+X2+R1+R2+Z1+Z2+V
Advantages
• High ram speed and fast back gauge positioning – saves significant working time
• Automatically calculates developed flat length and bending process sequence
• Full closed-loop control ensures extremely high bending accuracy (repeatability ±0.01mm)
• Real-time crowning compensation eliminates angle inconsistency along the bend line
• Graphic simulation reduces trial bends and material waste
Disadvantages
• Higher initial investment – but lower cost per part for high-volume or precision work
• Requires more skilled operators (though modern controls are very user-friendly)
JS RAGOS Recommendation: Electro-hydraulic CNC press brakes are ideal for large companies, precision fabrication shops, or any business that demands consistent quality, high output, and minimal setup time. As a manufacturer, JS RAGOS offers fully customizable electro-hydraulic models with DELEM or Cybelec controls.
How to Make the Final Decision – Summary Checklist
Choosing the right press brake (especially an affordable CNC press brake that doesn’t sacrifice quality) comes down to these key factors:
| Factor | What to consider |
| Tonnage & bending length | Match your thickest and longest material |
| Typical bend angles | Single angle → Normal NC; multiple angles → Torsion or Electro-hydraulic |
| Precision requirement | Loose tolerance → Normal/Torsion; tight tolerance (±0.5° or better) → Electro-hydraulic |
| Production volume | Low volume → Normal NC; high mix/mid volume → Torsion; high volume → Electro-hydraulic |
| Budget | Entry level: 8k–20k; Mid range: 20k–45k; High precision: 45k–150k+ |
| Future growth | Choose a machine with at least one level above your current needs |
Why Choose JS RAGOS as Your Press Brake Manufacturer?
At JS RAGOS, we design and build all three types of press brakes in-house. That means you get:
• Factory-direct pricing – no middleman markups
• Full customization: tonnage, length, axis configuration, control brand
• Pre-delivery inspection and on-site training available
• Spare parts support for 10+ years
Whether you need a simple Normal NC machine or a fully loaded electro-hydraulic CNC press brake, JS RAGOS delivers reliable, affordable solutions that boost your production efficiency.
Ready to Choose Your Affordable CNC Press Brake?
Investing time in this decision pays off for years. A well-matched press brake becomes the backbone of your fabrication shop – improving quality, reducing waste, and increasing profitability.Contact JS RAGOS today for a free consultation, machine demonstration, or customized quote. We help you discover an ideal, low-cost CNC press brakes for your company.
