Optical Angle Measurement System
Real-Time Accuracy for Perfect Bends using an Optical Angle Measurement System
One of the most difficult parts of sheet metal shaping has always been precise bending.
The distinct springback tendencies of various materials, including brass, aluminum, copper, and stainless steel, frequently result in inconsistent outcomes and necessitate repeated test bends.
This issue is totally resolved by JS RAGOS Optical Angle Measurement System.

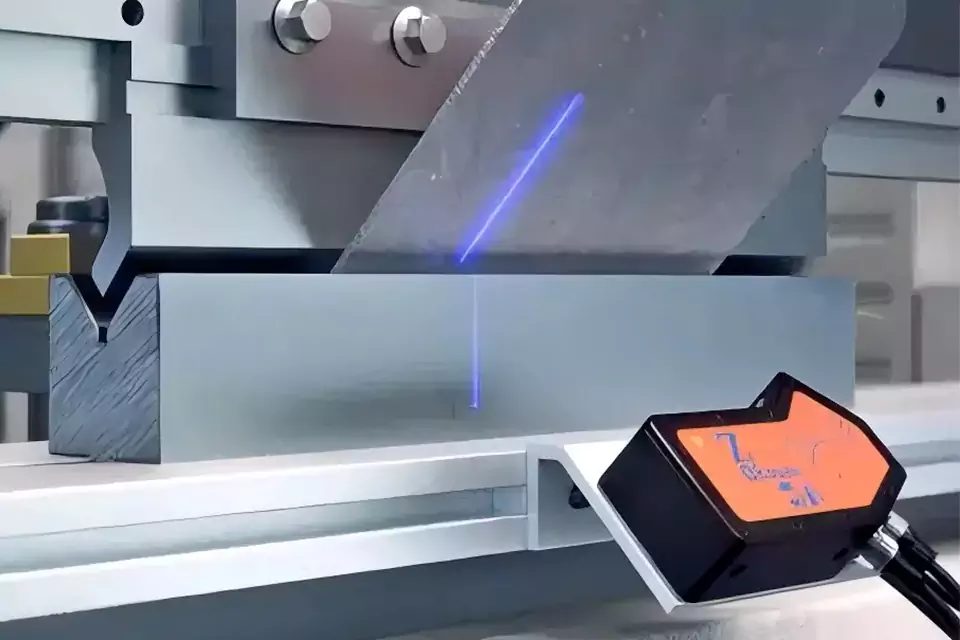

The technology monitors the actual bending angle directly on the workpiece during each cycle using laser triangulation and real-time feedback control, then instantaneously feeds the data to the CNC control for automatic adjustment.
This guarantees that no time or material is lost and that every component is bent to the desired angle on the first attempt.
Important Features & Advantages
1️⃣ Measurement and Correction in Real Time
Automatically adjusts for springback throughout each cycle while continuously monitoring the actual bending angle.
Ensures every bend is formed precisely from the first attempt.
2️⃣ Outstanding Precision
Measures the bending angle with a precision of up to ±0.05°, guaranteeing flawless reproducibility even under dynamic production conditions.
3️⃣ Decreased Waste and Setup Time
Achieve the correct angle on the first bend — reducing trial bends and material waste by up to 50%, saving both time and resources.
4️⃣ Broad Compatibility of Materials
Performs reliably across a wide variety of materials and thicknesses, including coated, reflective, and stainless-steel sheets.
5️⃣ Self-Learning Intelligence
Using adaptive software algorithms, the system memorizes springback data for different materials and automatically creates predictive correction profiles — improving accuracy over time.
6️⃣ Simple Integration
Fully compatible with JS RAGOS CNC controllers and other leading optical systems, ensuring smooth communication, synchronization, and real-time visualization on the control screen.
Optional Device

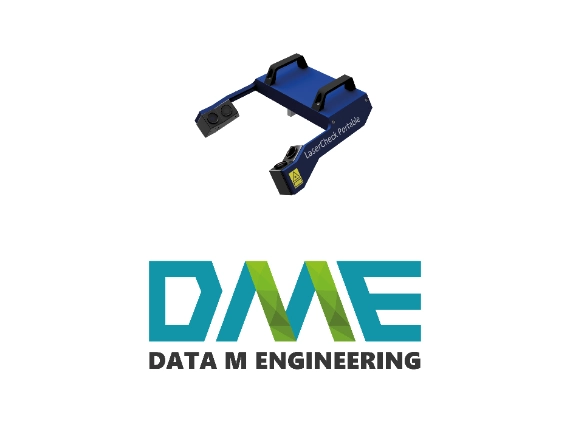

Lasercheck by Data M

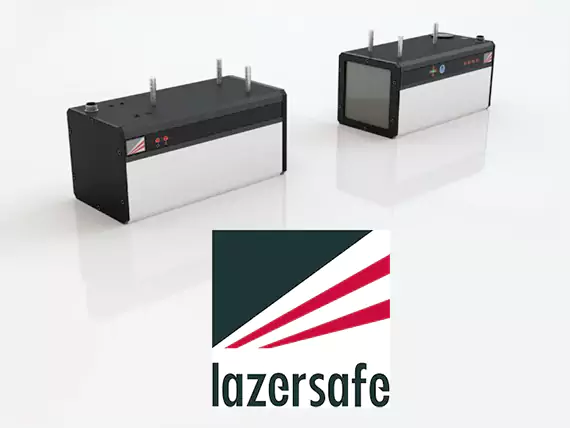

lris Plus by Lazer Safe

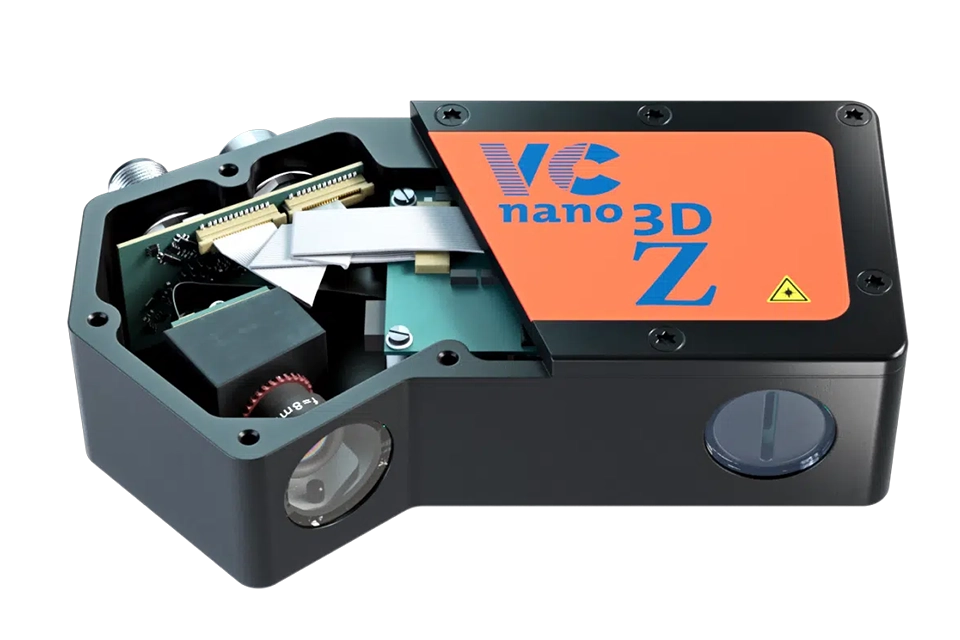

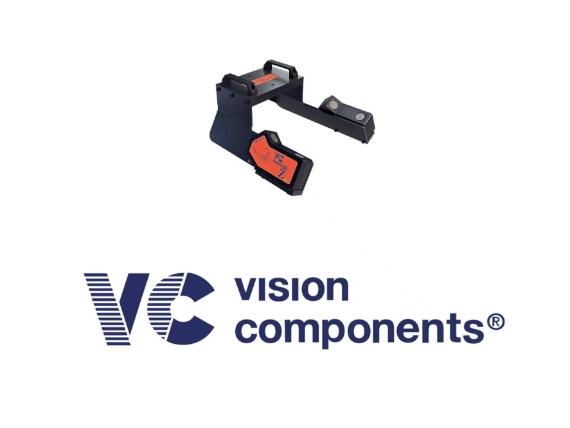

Nano by Vision

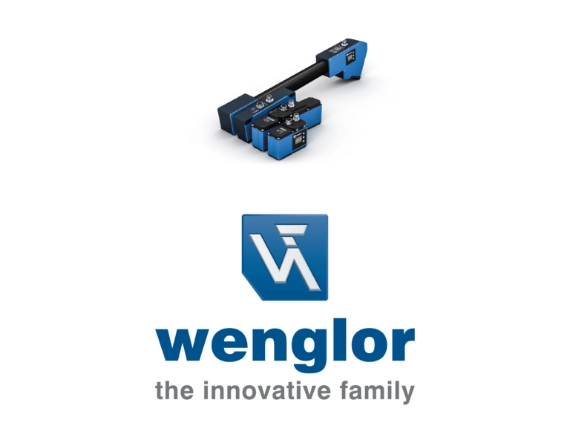

Wenglor

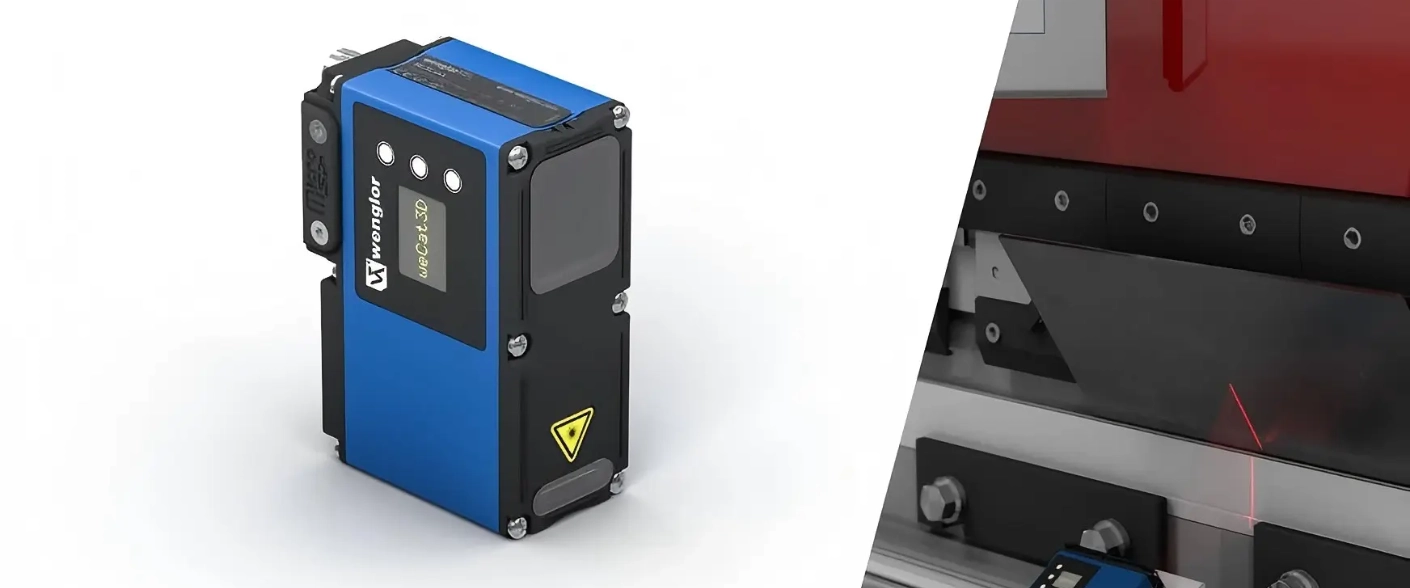

Wenglor
🧠Smarter, Faster, and Always Accurate
With the Optical Angle Measurement System, JS RAGOS press brakes become true intelligent bending machines — capable of measuring, learning, and correcting in real time.
The result: perfectly accurate bends, faster production, and higher profitability for every workshop.
