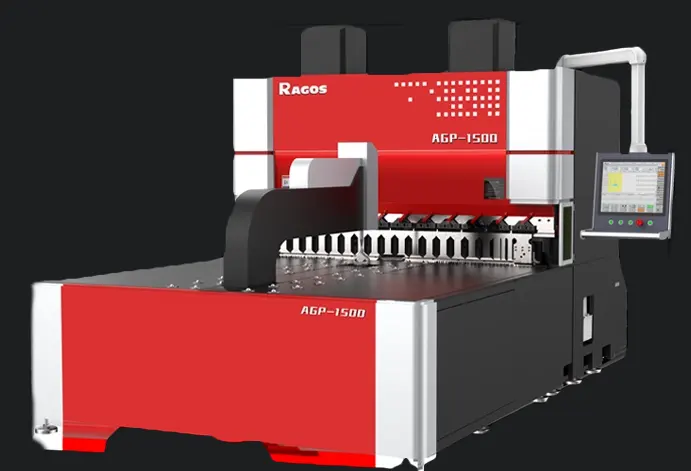

Panel Bender with Suction Cup Feeding CNC | Precision Metal Bender

Competence and Autonomy in Contemporary Sheet Metal Production

The modern manufacturing environment is highly competitive and requires precision, speed, and automation of any sheet metal fabrication operation. The suction cup feeding, panel bender CNC is a game-changer for industries that require high-quality quality repeatable bends on such sophisticated panel designs. Be it the production of doors, electrical cabinets, kitchen equipment, or furniture, this high technology is efficient, accurate, and flexible, unlike traditional press brakes.

The CNC panel benders at JS RAGOS have suction cup feeding, designed to simplify the multi-process bending process, reduce labor expenses, and enhance the overall productivity, making it a significant investment in contemporary fabrication shops.

What is a Panel Bender with Suction Cup Feeding CNC?

A panel bender having suction cup feeding CNC is an advanced machine of sheet metal forming that employs vacuum suction in feeding panels to a CNC-controlled bending apparatus. This machine differs from the traditional bending units:

• Exact positioning of sheets with little human operation.
• Repeatability in several bends.
• Efficient and secure operation of the sensitive or complex panels.

The suction-assisted metal panel bender is especially known to be good for jobs that include doors, drawers, cabinets, and panels with complicated folds or rounded edges. Its multi-axis control system enables making accurate bends to the thickness of the material up to 3 mm, and it provides high volume production with a steady quality.

Major Characteristics of CNC Panel Bender with Suction Cup Feeding

Multi-Axis Control of High Precision

Our JS RAGOS bending units (13-, 15-, and 18-axis) provide high precision, repeatable bends. Multi-axis control allows the machine to do complicated folds and flanges that cannot or cannot be done in a traditional press-bending machine. This will be useful especially to:

• Electrical cabinets that need bends repeatedly.
• Rounded edge or stepped edge kitchen sinks and appliance doors.
• Office and tool furniture in office and tool furniture manufacturing, drawer panels, and file cabinets.

With the integration of CNC automation and suction cup feeding, the system takes good care to keep the panel forming within tight tolerances so that each sheet is placed and bent in the correct position.

Robust Cast Iron Frame

The cast iron frame of the panel bender provides better durability, stability, and precision, even when it is in constant operation. It is very strong in construction, such that it vibrates very little when bending, and the result of metals bending is smooth edges and a longer life of the machine.

Intelligent Control System

The JS RAGOS panel benders are equipped with an intelligent CNC control system that is aimed at optimizing all operations:

• Adapts automatically depending on the type of material and thickness.
• Machine predictive maintenance monitors.
• Reduces the workload of operators while increasing efficiency.
• Finding optimal bending sequences of a complex panel.

The associated smart bending technology means that the panels are shaped in the same manner without needing manual recalibration, so that the production process is quicker and more precise.

Versatile Tooling Options

JS RAGOS panel benders are available with a broad range of bending tools, which include thin red-circle type tools to work with the light sheets and special clamps to work on the thicker panels. Features include:

• Quick clamps, Amada-script standard manual quick clamps to install quickly.
• Minimal downtime and efficient tool switching, with an auto tool change system.
• Tailor-made tooling solutions to meet a particular industry's needs.

These tooling possibilities guarantee the highest possible version of flexibility and highly accurate sheet metal panel bending to different uses, both in industrial production lines and in specialized workshops.

Ability to Process Multidimensional Shapes

The CNC panel bender is capable of automatic, computer-controlled creation of shapes, with its smart system, including:

• Doors, drawers, and cabinets
• Multibend and multiple flange panels.
• Elements with rounded edges or complex folds.

The machine will eliminate errors by automating the calculation of bend angles and sequences, thereby promoting the quality of the product without manual intervention, thereby enhancing throughput.

Material Compatibility

The suction cup feeding panel bender CNC can work with a wide assortment of different materials:

• Steel structural panels.
• Lightweight fabrication aluminum panels.
• Industrial/Kitchen Equipment stainless steel sheets.
• Decorative or electrical panels made of copper and brass.
• Heavy-duty manufacturing of metal sheets.

The CNC panel bender is versatile; thus, it fits various industries such as furniture, appliance, electrical housing, and commercial fabrication shops.

Robotization and Intelligent Combination

The recent model of JS RAGOS CNC panel benders has automation and intelligent control features:

• Continuous operation of robotic suction cup feeding.
• CAD/CAM support of pre-programmed bending programs.
• Operator adjustments by touchscreen.
• High repeatability and precision robot motors that are servo-controlled.

These intelligent systems minimize human error, improve productivity, and offer tight-tolerance panel forming in a range of materials and thicknesses.

Watch Applications Panel Bender with Suction Cup Feeding CNC

The machine can be used in:

Electrical Cabinets Manufacturing - Precise bends on panels, doors, and frames.

Appliance-Manufacturing - Assembly of sinks, appliance doors, and cabinet panels.

Furniture Industry: Drawer panels, file cabinets, and office furniture.

Industrial Fabrication - Multiple flanges, bends, and structural panels.

These panel benders achieve consistency in quality, reduce the turnaround time, and need less labor due to the combination of precision, automation, and suction cup feeding.

Technical Specifications

The common characteristics of a JS RAGOS panel bender with suction cup feeding CNC are:

Axis Configurations: 13-, 15-, or 18-axis multi-step bending.

Material Thickness: Up to 3 mm

Control System: Intelligent CNC based on predictive maintenance.

Feeding System: Suction cup having forward/back and rotating motion.

Tooling: Rapidly change Amada-script clamps, fine plate, and heavy tools.

Frame: Strong cast iron to ensure stability and low vibration.

All these characteristics render the machine appropriate to high-volume production, and at the same time, it produces high-precision bending of sheet metal panels.

Benefits of JS RAGOS CNC Panel Benders

Multi-Step Bend High-Precision - Repeatable, accurate complex panel bends.

Strong Build - Strong cast iron frame to be used over a long period of time.

Smart Automation - Decreases the workload of operators and increases the efficiency of the workflow.

Easy access to Tooling - Accommodates many different panel types and materials.

Suction Cup Feeding - Material handling- smooth, safe, and accurate.

Industrial Versatility - Can be used on doors, furniture, electrical cabinets, and kitchen equipment.

Conclusion

The panel bender with suction cup feeding CNC is the latest technology of sheet metal bending. With multi-axis control, vacuum feeding, intelligent automation, and high-precision tooling, it provides high-quality, repeatable bends with a broad array of materials and applications. With JS RAGOS CNC panel benders, manufacturers will be able to: Automatize complicated bending processes, Work with a variety of materials, such as steel, aluminum, stainless, copper, and thick panels.

Browse our JS RAGOS panel bender line and take your sheet metal fabrication to the next level.
