Heavy Duty Press Brake

This equipment can achieve CNC plate feeding and be connected with the controller (Delem, ESA, Cyberlec)

This system automatically feeds metal sheets or plates into the press brake for processing. It typically consists of a conveyor belt or roller system that transports the material to the bending area. Automatic sheet feeders are ideal for high-volume production environments and help minimize manual handling.

The Vario die is built in 1000 mm (39.37″) standard segments, which can be combined to match press brakes from 1 m up to 12 m.
Each segment can be individually adjusted to a different V-opening, allowing multiple V sizes on a single press brake bed — perfect for flexible production.

Adjustment is fast and simple:

• Pneumatic gear system(6 bar) for quick setting
• V size positioning via scale or CNC signal
• From minimum to maximum V in just 5 seconds

A built-in acoustic signal confirms positioning.
Hardened rollers inside the die reduce bending force by 25 – 30 %, improving efficiency and lowering machine stress.

Our DSVP (Double Servo Valve Pump) system is specially designed for large press brakes. Compared with traditional Siemens motors, it can save up to 60–70% on electric bills while delivering high bending accuracy, fast response, and low noise. This makes it the ideal solution for heavy-duty applications where both power and efficiency are essential.Key Advantages:

• High Accuracy– Dual servo motors ensure precise control of bending operations.
• Energy Saving– Power consumption is reduced compared to conventional hydraulic systems.
• Low Noise– Quiet operation makes it suitable for modern, eco-friendly workshops.
• Reliability– Fewer hydraulic components result in lower failure rates and easier maintenance.

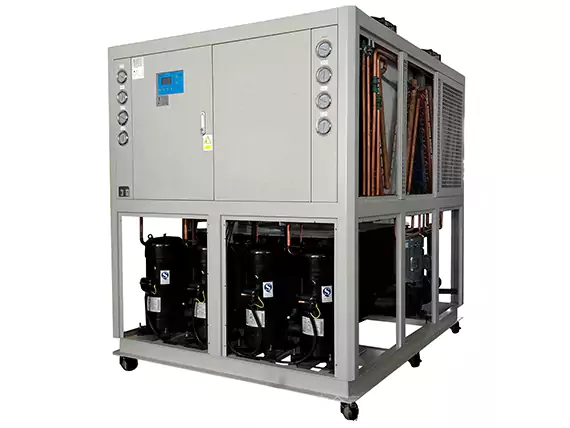

Our cooling units keep hydraulic oil and servo motors at stable temperatures, ensuring high precision, long equipment life, and reliable operation. Perfect for 24/7 production and hot climate regions, they deliver consistent performance while reducing energy consumption.

We provide press brake CNC control systems that can be fully customized, with axis configurations ranging from 4-axis to 6-axis and 8-axis. Every system is customized to meet the unique production needs of the client, whether they are standard bending, complex multi-step operations, or fully automated bending production. Our products are made to be as accurate, effective, and simple to use as possible.

We can suggest the best features, such as 2D and 3D programming and comprehensive 3D simulation capabilities, based on your production demands. We collaborate with well-known CNC manufacturers like Delem, Cybelec, ESA, and STEP to guarantee that your press brake has cutting-edge control technology for dependable operation and exceptional bending precision.

DSP LASER protects the pressbrake operator from the danger of crushing that can take place accidentally between the moving part of the machine and the fixed one.The project idea used for this device is the one to fit out the moving pert of the pressbrake with a protection zone.

This is a volume of suitable and special dimensions generated by DSP LASER and placed under the upper tool vertex at a higher distance than that the machine requires to stop.So the protection zone, that moves together with the mobile part because integral with it, advances the race of this one towards the fixed pert. An obstacle (for example the Operator fingers) when entering the protection zone. Is detected immediately causing consequently the interruption of the mobile part motion.

A crowning table is a press brake feature designed to compensate for deflection in the machine frame during bending.

By using mechanical wedges or a hydraulic system to create a slight upward curve in the center of the table, it ensures consistent bend angles along the entire workpiece length, improving overall bending accuracy.

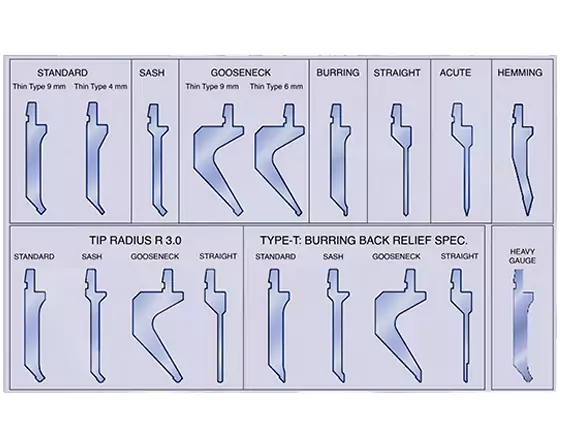

We offer press brake tooling that is specially designed to accommodate a variety of bending applications. Every tool is made from premium 42CrMo alloy steel, which has remarkable strength, durability, and resistance to wear. To increase service life and preserve constant bending quality, each tool is precisely heat-treated.

Additionally, we provide segmentation services, which enable the equipment to be separated into manageable lengths for quicker setup and simpler handling. To give customers the most flexibility for their press brake operations, we can manufacture tooling that is compatible with Wila, Amada, and other key tooling systems.

The Laser check system, developed with Data-M & Vision Components, ensures highly accurate bend angles after just a single bending operation.

As a fully automatic, laser-assisted bend angle measurement solution for CNC press brakes, iMeasure delivers precise angle detection regardless of material type or thickness. With an accuracy exceeding ±0.1°, it achieves a level of precision previously unattainable.

The system automatically corrects bending angles by projecting a laser beam onto the sheet surface, which is then detected by a camera. By calculating the angle between the laser beam and the camera axis, the system determines the actual bend angle, compensates for springback, and optimizes the applied force for perfect results.
