Tandem Press Brake

Finite Element Analysis (FEA) is applied in our press brake design to simulate and optimize structural performance under real working conditions. By analyzing stress distribution, deformation, and load capacity, we ensure the machine frame achieves maximum strength, precision, and durability before production.

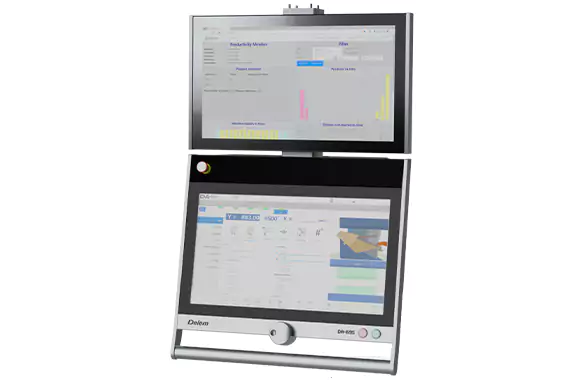

Second display solution for DA-60S series CNC press brake controls

• 24" high resolution colour TFT
• Industrial grade touch screen functionality
• HDMI interfacing
• Proprietary switch function from CNC
• USB, peripheral interfacing, automatically switching 2x USB, switching with source 1x USB, direct

Premium parts from Rexroth and Hawe are available for our hydraulic systems, guaranteeing long service life, excellent efficiency, and steady performance. Because of the design's independent oil tank, after-sales maintenance is made simpler and more convenient. The oil tank receives an anti-rust phosphating treatment to increase durability and successfully stop corrosion over time.
Additionally, by preventing the development of sludge that can clog oil pipelines over time, this treatment helps preserve the purity of the oil. With the help of sophisticated hydraulic components, sturdy construction, and proactive strategies, our press brakes provide dependable operation and less downtime to clients all over the world.

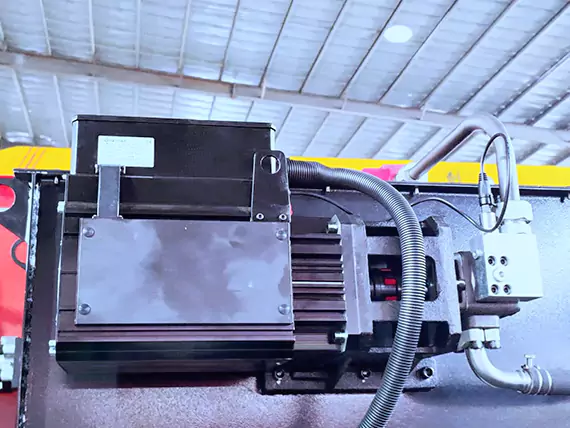

JS Ragos high-efficiency servo motors that can reduce electric bills by 20–30% compared to conventional Siemens motors. These servo motors operate with remarkably low noise—around 20 dB—providing a quieter, more comfortable working environment. The combination of advanced hydraulics and energy-saving, low-noise servo technology ensures our press brakes deliver both superior performance and reduced operating costs.

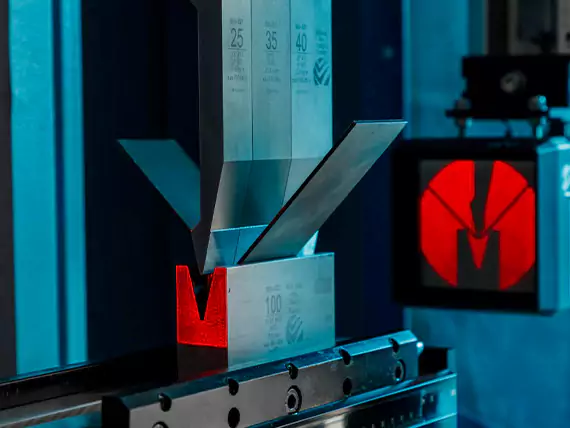

1. Optical protection functions：support
2. Optical imaging functions：support
3. Laser transmitter:  CLASS 1 Block laser
4. Receiver: Camera receiver with integrated image processor
5. Maximum recommended optical range: 8 meters
6. Sensing area: 30mm(H)x30mm(W)
7. Minimum object detection resolution: 2mm
8. Connector type: M12 12pin
9. Tool compatibility: V tools and non-standard tools
10. Integrated status LEDs: support

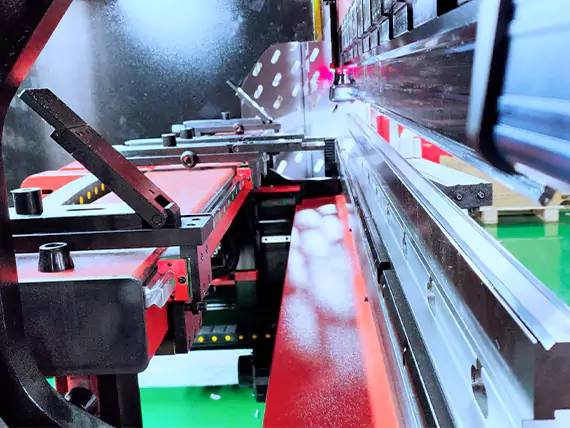

• Ball screws and linear guidepartner TPI, Hiwin
• optionalaxes Z1‐Z2.
• Fingers with double stop and micrometric adjustment.
• Positionaccuracy ± 0.03 mm.
• Zaxis speed 1000 mm/s.
• Xaxis speed 400 mm/s.
• Light curtain on the back side

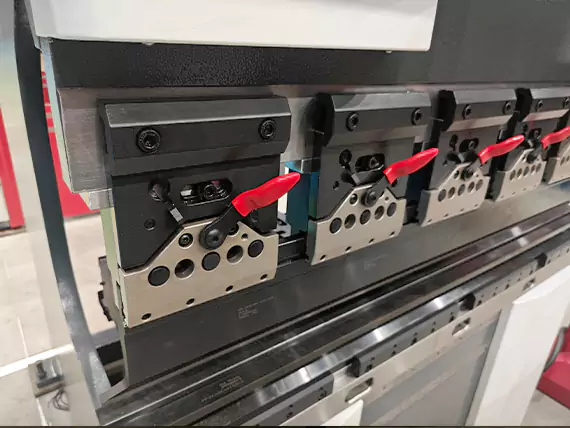

Upper press brake punches can be installed or removed quickly, safely, and without the need for tools thanks to Amada quick clamps. Operators may secure or release equipment in a matter of seconds with a basic lever or cam-lock mechanism, greatly cutting setup time and increasing production productivity.

Manufactured with high-strength alloy steel and precision-machined for perfect alignment, Amada quick clamps ensure stable clamping force and consistent bending accuracy. Their ergonomic design minimizes operator fatigue, while the durable construction guarantees long service life even under heavy-duty production conditions.

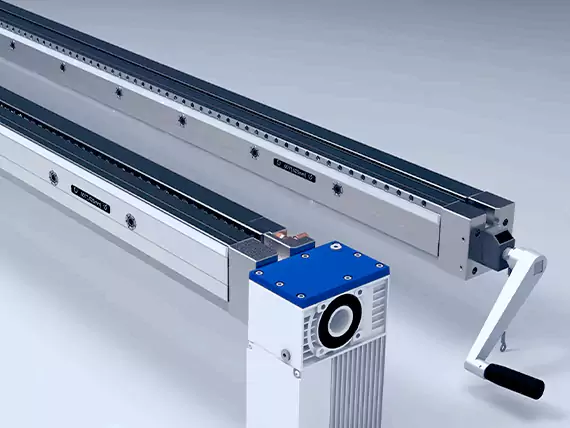

A crowning table is a press brake feature designed to compensate for deflection in the machine frame during bending.

By using mechanical wedges or a hydraulic system to create a slight upward curve in the center of the table, it ensures consistent bend angles along the entire workpiece length, improving overall bending accuracy.

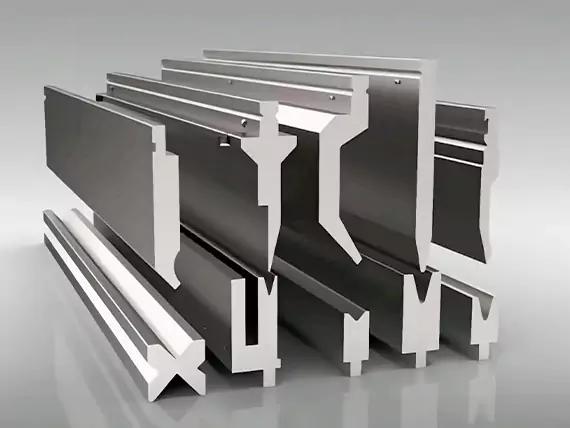

All of our machines come standard with one complete set of tooling, ensuring you can begin production immediately after installation.

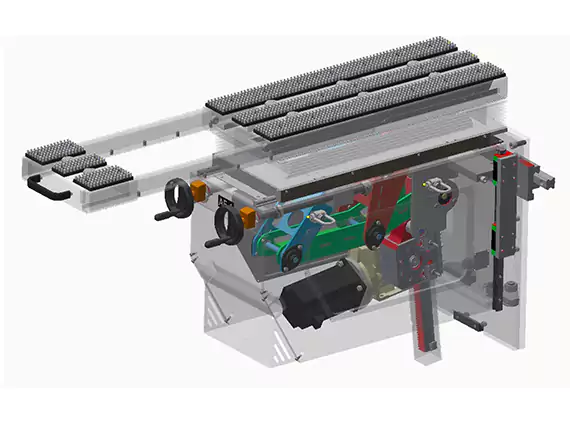

The follower support system assists operators by automatically supporting and following the workpiece during the bending process. It is especially useful for large, heavy, or long sheets, reducing operator effort and improving safety.

• Automatic Following– The support arms move in sync with the bending process, keeping the sheet stable.
• Labor Saving– Reduces the need for multiple operators when handling big or heavy parts.
• Safe & Ergonomic– Minimizes physical strain and risk for operators, enhancing workplace safety.
• Flexible Use– Can be adjusted or parked aside when not required, keeping the workspace efficient.
• High Load Capacity– Each support arm can carry up to 250 kg, making it suitable for heavy-duty applications.

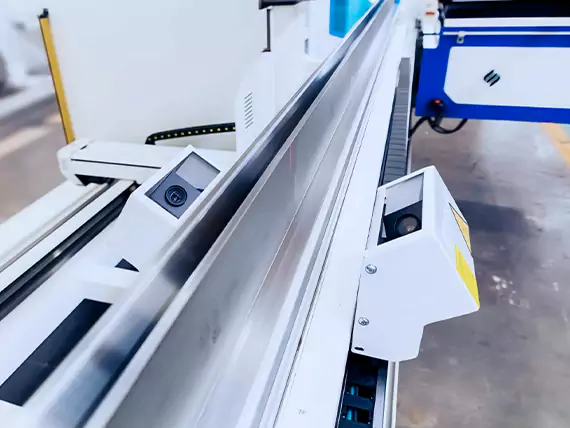

The Laser check system, developed with Data-M & Vision Components, ensures highly accurate bend angles after just a single bending operation.

As a fully automatic, laser-assisted bend angle measurement solution for CNC press brakes, iMeasure delivers precise angle detection regardless of material type or thickness. With an accuracy exceeding ±0.1°, it achieves a level of precision previously unattainable.

The system automatically corrects bending angles by projecting a laser beam onto the sheet surface, which is then detected by a camera. By calculating the angle between the laser beam and the camera axis, the system determines the actual bend angle, compensates for springback, and optimizes the applied force for perfect results.
