CNC Press Brake Automation: From Backgauge to Robot Bending Cells
CNC press brake automation is the integration of programmable technology and robotics into the metal bending process to increase precision, speed, and consistency. At its simplest level, automation involves a CNC-controlled backgauge that automatically positions the workpiece for each bend. In more advanced setups, it evolves into fully autonomous robotic bending cells where robots handle material loading, tool changes, and part stacking. By automating these tasks, manufacturers eliminate human error, reduce cycle times, and solve labor shortages, allowing the machine to run with minimal intervention while maintaining tight tolerances across high-volume production runs.
What are the Different Levels of Press Brake Automation?
Automation isn't an "all or nothing" investment. It exists on a spectrum that allows shops to scale according to their budget and production volume.
CNC Backgauges and Controls

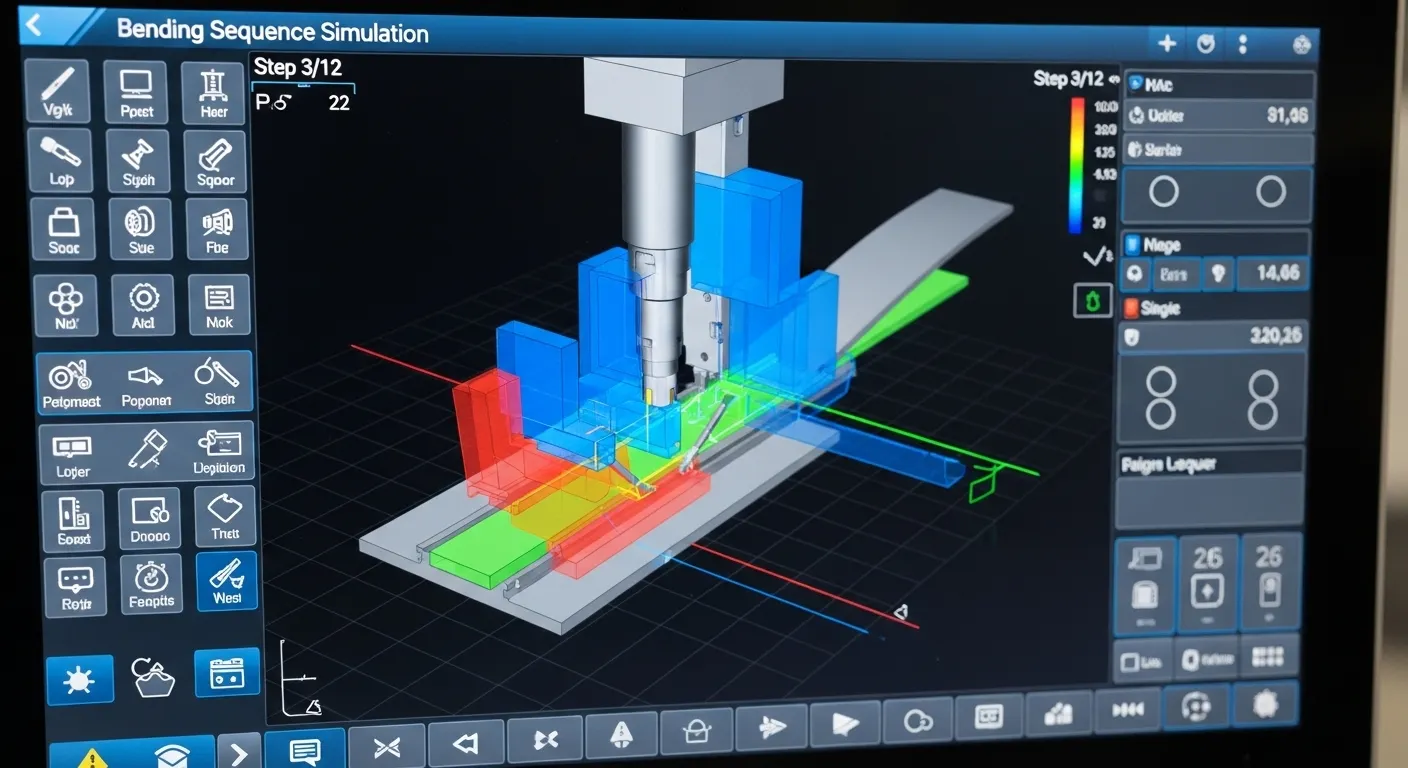

The foundation of any modern machine is the CNC backgauge. Instead of a manual stop, a motorized system moves across multiple axes (X, R, Z1, Z2) to ensure the metal sheet is perfectly aligned before the ram descends. Modern controllers allow operators to visualize the bend in 3D, reducing setup time significantly.
Automatic Tool Changers (ATC)

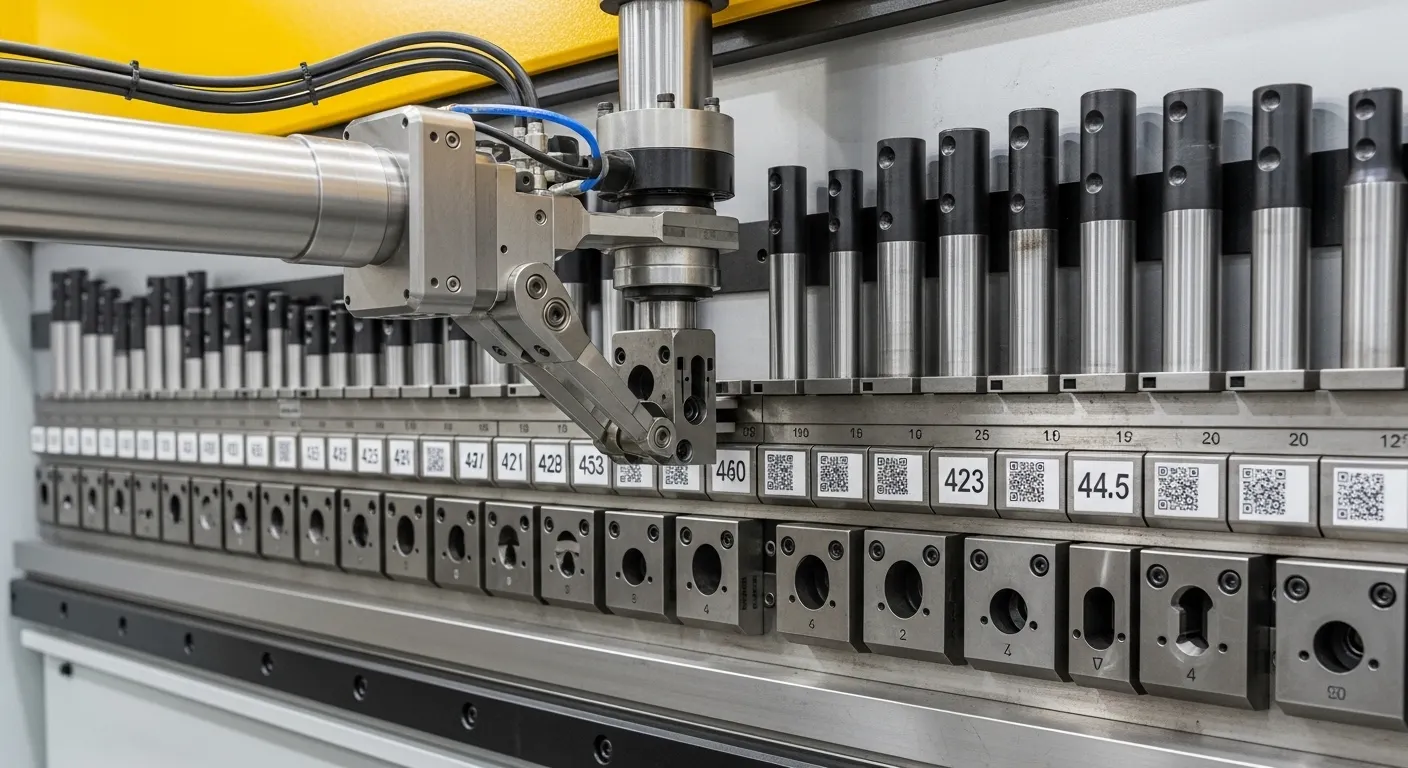

One of the biggest bottlenecks in fabrication is swapping heavy punches and dies. An ATC system uses a mechanical arm to retrieve and seat the correct tooling in seconds. This is critical for shops running small batches of various parts, as it keeps the "green light" on the machine glowing longer. For more on optimizing your setup, see our guide on Press Brake Tooling and Accessories: What to Buy First.
Full Robotic Bending Cells
A robotic bending cell represents the pinnacle of automation. Here, a 6-axis industrial robot picks up the raw sheet, maneuvers it through the bending sequences—including complex "re-grips"—and stacks the finished part on a pallet. These cells can often run "lights out" during night shifts.
Does Press Brake Automation Improve Part Accuracy?
Yes, CNC press brake automation significantly improves accuracy by removing the variables of human fatigue and inconsistent positioning. Because the CNC system and robotic arms use high-resolution encoders, every part is held in the exact same position for every stroke.
While a human operator might shift a heavy plate by a millimeter after five hours of work, a robot maintains sub-millimeter precision indefinitely. Automated systems also integrate with angle measurement systems that calculate material springback in real-time, adjusting the depth of the stroke on the fly to ensure every angle is perfect.
How Much Does a Robotic Press Brake Cost?
The cost of a robotic press brake system typically ranges from $150,000 to over $500,000, depending on the size of the robot, the complexity of the software, and whether it includes an automatic tool changer.
While the upfront investment is high, the ROI is usually realized through 24/7 operation and the elimination of scrap parts. For smaller operations, it may be more cost-effective to spec a machine that won’t limit you by starting with an "automation-ready" CNC brake that can be retrofitted later.
| Feature | Manual CNC | Semi-Automated (ATC) | Full Robotic Cell |
| Operator Skill | High | Medium | Low (Post-Setup) |
| Setup Time | 15–30 Mins | 2–5 Mins | 10–20 Mins (Digital) |
| Consistency | Variable | High | Extremely High |
| Ideal Volume | Prototypes | Mid-Size Batches | High Volume / Repeat |
Can You Automate an Existing Press Brake?
Many modern CNC press brakes can be retrofitted with automation, provided the controller is compatible with external robotic communication (handshaking). Adding a "cobot" (collaborative robot) is a popular way to automate existing machines without needing massive safety cages.
However, if your current machine lacks a high-speed CNC interface, it might be more economical to look into global CNC press brake sourcing for a dedicated automated unit. Integration requires the machine and the robot to "talk" to each other to ensure the robot doesn't move while the ram is down.
Benefits of Integrating Tooling and Automation
Integrating your tooling and automation for CNC press brakes creates a seamless workflow. When the software knows exactly which tools are loaded, it can automatically calculate the safest and most efficient path for the robot to move.
- Reduced Damage: Robots don't drop parts or scratch them against the die.
- Safety: Removing the operator’s hands from the point of operation eliminates the risk of pinch-point injuries.
- Data Tracking: Automated systems provide precise data on how many parts were produced and the average cycle time per part.
Frequently Asked Questions
Offline programming allows engineers to create bending sequences and robot movements on a computer while the machine is still running another job. This minimizes downtime.
Yes, heavy-duty industrial robots can handle plates weighing hundreds of pounds, often using vacuum suction cups or magnetic grippers to maintain a secure hold.
With an Automatic Tool Changer (ATC), automation is very effective for small batches. Without an ATC, the time spent manually changing tools may offset the gains of a robotic arm for very short runs.
Conclusion
CNC press brake automation is no longer a luxury reserved for automotive giants; it is a necessity for shops looking to remain competitive in a high-cost labor market. Whether you start with an advanced backgauge or dive into a full robotic cell, the goal is the same: consistent, high-quality parts with minimal waste.
Ready to upgrade your shop's capabilities? Contact our experts today to discuss which level of automation fits your current production volume.
